Datasheet
DC 24V (18V-36V) converts to DC 13.8V buck Voltage Converters/step-down voltage Converters/Automatic buck converters/Regulated voltage power supply/Fixed output voltage converter and Multiple Smart protection.
Good quality, high conversion efficiency, long service life, telligent urrent soft start.
Specification:
* Input Voltage: DC 24V (18V-36V) (switching power supply or DC Industrial Power supply);
* Output voltage: DC 13.8V;
* Output current: 3A;
* Output Rated Power: 13.8W ;
*Power consumption: 2.5ma;
* Ripple Wave: 140Mv;* Voltage Regulation: Less Than 1.5%;
* Load Regulation: Less Than 2%;
* Operating temperature: -40°C~ +80°C, when temperature more than 40°C, please make lower power, or enhance heat dissipation.
* Fixing Hole Diameter: 4mm;
* Hole Center Diameter: 51mm;
* Size: 44mm x 25mm x 20.5mm;
* Item net Weight: 28grams;
* Shipping Weight:28 grams;
Product manual:;
1, DC battery or switching power supply power must be greater than the load power.;
2, The output power of the power converter must be greater than the power of the load.;
Pakage include:
1Pc 24V to 13.8Vbuck Voltage Converter
Good quality, high conversion efficiency, long service life, telligent urrent soft start.
Specification:
* Input Voltage: DC 24V (18V-36V) (switching power supply or DC Industrial Power supply);
* Output voltage: DC 13.8V;
* Output current: 3A;
* Output Rated Power: 13.8W ;
*Power consumption: 2.5ma;
* Ripple Wave: 140Mv;* Voltage Regulation: Less Than 1.5%;
* Load Regulation: Less Than 2%;
* Operating temperature: -40°C~ +80°C, when temperature more than 40°C, please make lower power, or enhance heat dissipation.
* Fixing Hole Diameter: 4mm;
* Hole Center Diameter: 51mm;
* Size: 44mm x 25mm x 20.5mm;
* Item net Weight: 28grams;
* Shipping Weight:28 grams;
Product manual:;
1, DC battery or switching power supply power must be greater than the load power.;
2, The output power of the power converter must be greater than the power of the load.;
Pakage include:
1Pc 24V to 13.8Vbuck Voltage Converter

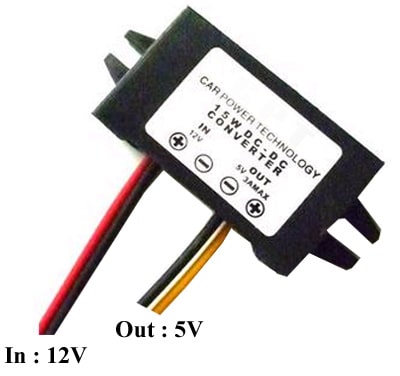

מפרט עברית :
• משקל 0.09kg
• מתח מינימאלי: 2V
• מתח כניסה: 12V
• מתח כניסה: 12V
• מתח מוצא: 5V
• זרם: 3A
• הספק כללי: 15W
• יעילות המרה: 90%
• טמפרטורת הפעלה מרבית 80 ° C
• הגנת מתח גבוה
• זרם: 3A
• הספק כללי: 15W
• יעילות המרה: 90%
• טמפרטורת הפעלה מרבית 80 ° C
• הגנת מתח גבוה
• הגנת עומס יתר
• הגנת חימום יתר
• הגנת קלט הפוך קוטביות
• חסין מים
• גודל קטן: 58x40x22mm
